art.1844

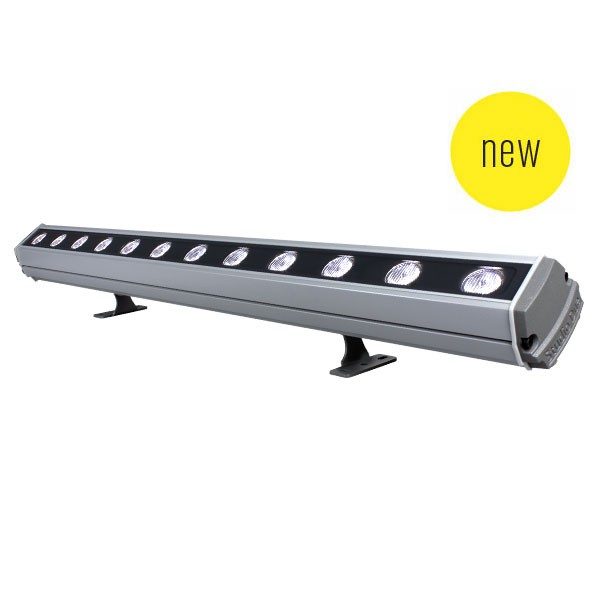

The ARCHIBAR SL150 RDM is a new version of the Archibar line.
Available in RGBW/FC and MONOCHROMATIC light source as well as in WHITE BALANCE.
Standard version Plug-in.
Optional dimmable version DMX / RDM / DALI, configuration by DRS Setup.
Available in 4 different measures:
• Standard 90 cm.
• On request 60 – 120 – 150 cm
• Standard fixture colour finishing is grey. Optional black and white (art. FX-COLOUR).
Optional: marine grade treatment.
| Source | – n. 30 high power 5000K White LEDs (n.15 lenses) |
|---|---|
| Optic | – 25° medium (38 mm lenses) |
| Tilt | – Manual 160° |
| Control | – None |
| Connections | – Main Power: 3pin IP 67 connector (male-female), possibility to link up to 8 devices at 230V or 4 devices at 120V in chain. |
| Safety | – n. 2 eyebolts for safety chains |
| Setup And Configuration | – Plug-in |
| Power Supply | – Voltage range: 100-240VAC |
| Physical | – WxDxH: 928 x110x93 mm (dimension of profile) |
| Others | – IP 67 Power Protection |
