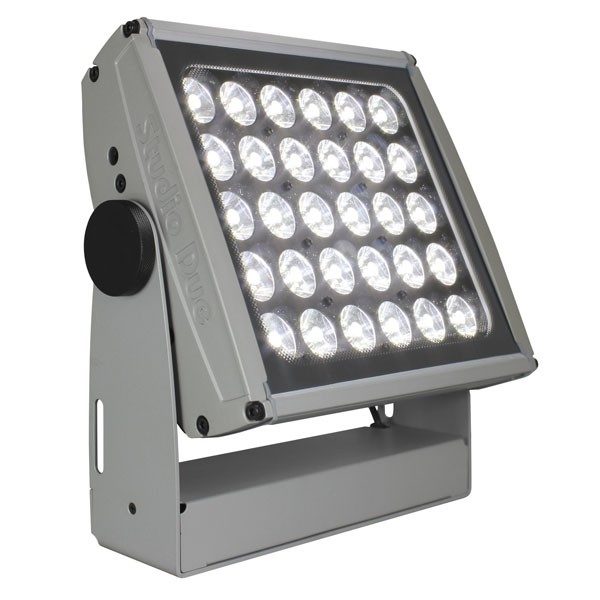

WL 30 UN Ultra Narrow (Monochromatic)

Categories: , , , , .

Description

The new WL 30 UN (ULTRA NARROW) with its smart design is the new IP67 LED Lighting fixture suitable for monochromatic applications.
Utilizes high brightness LEDs combined with an high efficient optic system for a rectangular projection.

The ULTRA NARROW lenses of 4°, allow to light up objects from far away distance (more than 200 meters).
It can be supplied with different color temperature white LEDs (warm, neutral and cool) or red, green, blue LEDs).

• Standard fixture colour finishing is grey. Optional black and white (art. FX-COLOUR).

Additional information

Source

– n. 30 (5W) White LEDs 5000K
– 90W total light power
– 12000 lm
Available on request

– 3000K, 4000K, 6000K white LEDs or red, green, blue, amber LEDs
Optic

– 4° ULTRA NARROW 38 mm lenses
Tilt

– Manual 160°
Control

– None
Connections

– Main Power: 3x1mm cable 1,5mt.
Setup and configuration

– Plug-in
Rating protection

– IP 67
Power Supply

– Voltage range: 88-264VAC, 124-370VDC
– Frequency range: 47-63Hz
– Active Power factor: PF>0.95/230VAC, PF>0.98/115VAC
– Current: 0.35A@230VAC;
– Fuse inside Power Supply
– Power: 100W
Physical

– WxDxH: 350x130x340 mm
– Weight: 9 Kg
