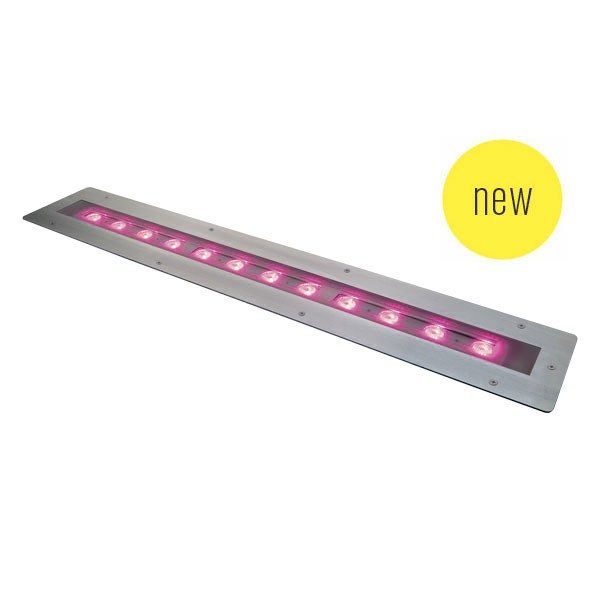

ARCHIBAR-i T SL150 RGBW RDM Inground Tilt

Categories: , , , .

Description

The ARCHIBAR-i T (TILT version) SL150 RDM is a new version of the Archibar line.
Motorized tilt 0-10° by DRS Setup.
INGROUND LED linear bar which combines aesthetic and resistance with ideal performance in a versatile projector. Waterproof and tremendously resistant.
Available in RGBW/FC and MONOCHROMATIC light source as well as in WHITE BALANCE.
RDM / DMX Protocol. Configuration by DRS Setup.

Additional information

Source

– n. 12 RGBW LEDs
– Total out lumen:
– R 750, G 1100, B 230, W 1600
– Total light power: 60W
Optic

– 25° medium (38 mm lenses)
– On request: narrow, wide (38 mm lenses)
Tilt

– Motorized tilt from 0° to 10°
Control

– Standard interface: RS-485
– Protocol: USITT DMX 512 / RDM
Connections

– Available as accessories:
— Wireless DMX receiver
Setup and configuration

– RDM Control/configuration or individually by DRS (remote control device)
– Dedicated DMX channel for white balance
– DMX or Auto mode with Master-Slave function
– Intelligent temperature control
– Halogen simulation
– CYM simulation
– Flicker-free function
– Smooth dimming function
Rate

– IP 67
Power supply

– Voltage range: 100-240VAC
– Frequency range: 47-63Hz
– Active Power factor: PF>0.97/230VAC
– Current: 0.28A@230VAC
– Power: 65W
– Fuse T3,15A (inside fixture)
DMX Channels

– 9CH mode
– 6CH mode
– 5CH mode
– 4CH mode
Physical

– WxDxH: 1063x182x133 mm
– Weight: 15 Kg.
