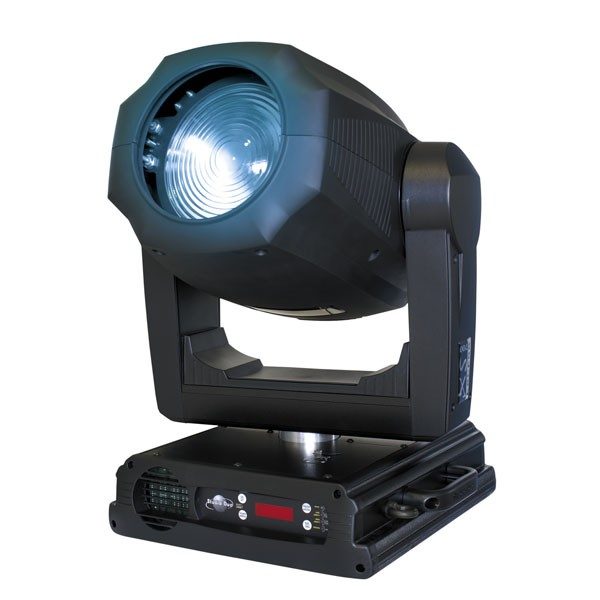

XS 700 WASH/C

Description

The “Xs 700 Wash/C” is a Studio Due incredible and powerful wash light spot. With CYM system + 7 continuous colours. Its optic system, the most powerful HMI 700W/SE lamp and the modern and reliable electronics, allow incredible performances. Zoom from 15° to 35°.

Additional information

Source

Discharge : HMI 700W/SE
Color temperature 5.600 K
Lamp life 750 hours

Colours

CYM system + wheel 7 colours + white and 8 bi-colours (rainbow effect)

Optic

Motorized electronic zoom from 15° to 35°

Effects

Filter 3200 K + oval light
Blackout / strobe effect with linear speed (256 steps) (min. 1 flash/sec. max. 7 flash/sec.) + dimmer 0÷100%

Gobos

Gobos wheel with four rotating gobos + white continuous positioning + rainbow

Tilt

– 540° pan (min. 3,9 sec.) 16 bit
– 270° tilt. (min. 2,3 sec.) 16 bit

Control

Standard interface RS-485, (3 and 5 pin connectors)
Opto-coupled input, protocol: USITT DMX 512

Setup and configuration

Built-in microprocessor with LED display and buttons
Auto mode with Master/Slave functions
Music synch by internal microphone

Power Supply

Electronic ballast with electronic PFC
Lamp square wave frequency: 100Hz
Rated voltage: 100/240V~ ; 50-60Hz
Rated wattage: 900 W
Built in electronic PFC: 0,99 (cosØ)

DMX Channels

– 14 ch mode
– 12 ch mode

Physical

WxDxH: 450 x 395 x 680 mm
Weight: 26 kg.
