WR 40 (Monochromatic)

Description

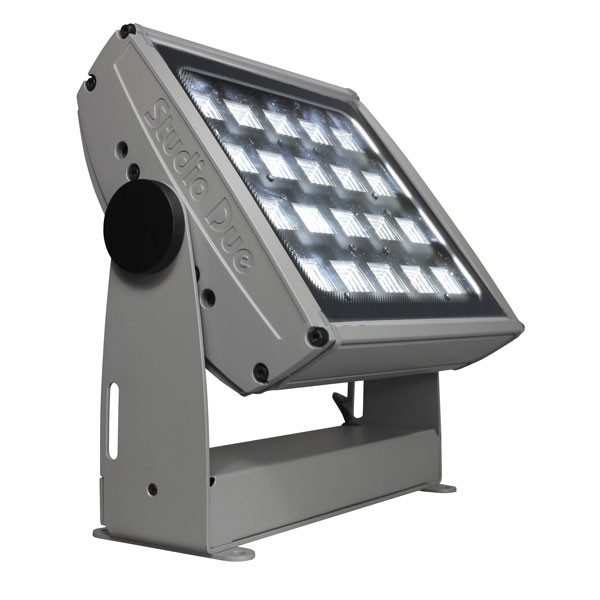

The WR series is a new range of LED lighting fixture with a smart and attractive design.
IP67 rated the WR40 utlilizes 40 high brightness white LEDs combined with an innovative optic system with antiglare reflectors.
Particularly adapt to light up objects from short distance.
It can be supplied with different color temperature white LEDs (warm, neutral and cool) or red, green, blue LEDs.

• Standard fixture colour finishing is grey. Optional black and white (art. FX-COLOUR).

Additional information

Source

– n. 40 (5W) White LEDs 5000K
– Total light power: 100W
– Total out lumen: 12500lm

Available on request

– 3000K, 4000K, 6000K white LEDs or red, green, blue, amber LEDs

Optic

– 70°x55°

Tilt

– Manual 160°

Control

– None

Connections

– Main Power: 3x1mm cable 1,5mt.

Setup and configuration

– Plug-in

Rating protection

– IP 67

Power Supply

– Voltage range: 88-264VAC, 124-370VDC
– Frequency range: 47-63Hz
– Active Power factor: PF>0.95/230VAC, PF>0.98/115VAC
– Current: 0.45A@230VAC;
– Fuse inside Power Supply
– Power: 120W

Physical

– WxDxH: 350x130x340 mm
– Weight: 9 Kg.
