WL 60 (Monochromatic)

Categories: , , .

Description

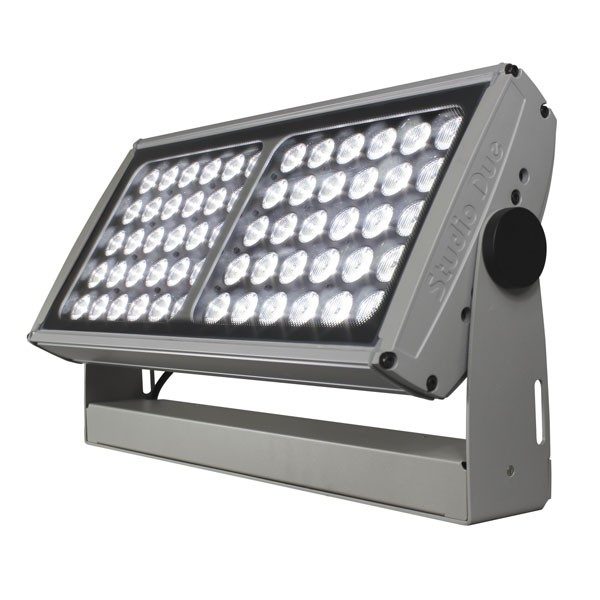

The new WL 60 with its smart design is the new IP67 LED Lighting fixture suitable for monochromatic applications.
Utilizes high brightness LEDs combined with an high efficient optic system for a rectangular projection.

It can be supplied with different color temperature white LEDs (warm, neutral and cool) or red, green, blue LEDs.

• Standard fixture colour finishing is grey. Optional black and white (art. FX-COLOUR).

Additional information

Source

– n. 60 (5W) White LEDs 5000K
– Total light power: 180W
– Total out lumen: 24000 lm
Available on request

– 3000K, 4000K, 6000K white LEDs or red, green, blue, amber LEDs
Optic

– Square Opening (20ºx30º) 38mm lenses
– On request: 10°, 15º, 25°, 40º – 65° with frost filter
Tilt

– Manual 160°
Control

– None
Connections

– Main Power: 3x1mm cable 1,5mt.
Setup and configuration

– Plug-in
Rating protection

– IP 67
Power Supply

– Voltage range: 88-264VAC, 124-370VDC
– Frequency range: 47-63Hz
– Active Power factor: PF>0.95/230VAC, PF>0.98/115VAC
– Current: 0.7A@230VAC;
– Fuse inside Power Supply
– Power: 200W
Physical

– WxDxH: 611,5x130x340 mm
– Weight: 15 Kg.
