TERRA PLUS / WB RDM (White Balance)

Category: .

Description

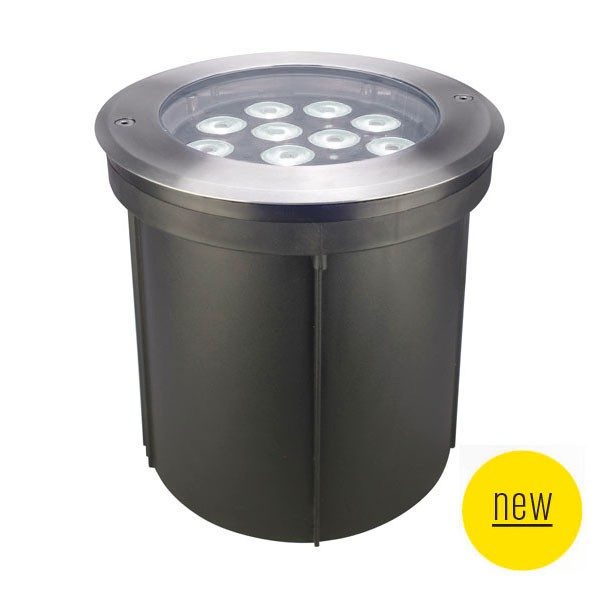

Inground LED fixture with 24 powerful white LEDs (n.12 – 2900K + n.12 – 5000K). IP67 rating protection.

TERRA PLUS / WB RDM (White Balance) can be used to decorate columns, pillars, along walkways, on patios, in steps, to highlight and to landscape details and key elements.

• Standard fixture colour finishing is grey

Additional information

Source

– n. 12 (2900K) warm white LEDs
– n. 12 (6000K) cool white LEDs
– Total out lumen: 6200 (4000K LEDs)
– Total light power: 40W

Optic

– 15° beam (38mm lenses)
– On request: medium and wide beam

Control

– Standard interface: RS-485, optocoupled input
– Protocol: USITT DMX 512 / RDM

Connection

– Main Power: 3×1 cable 1,5mt.
– DMX INPUT and Tilt control: 4 Pin Male IP67 connector (cable 25cm.)
– DMX OUTPUT: 4 Pin Female IP67 connector (cable 25cm.)

Setup and configuration

– RDM Control/configuration or individually by DRS (remote control device)
– Dedicated DMX channel for white balance
– DMX or Auto mode with Master-Slave function
– Intelligent temperature control
– Halogen simulation
– CYM simulation
– Flicker-free function
– Smooth dimming function

IP Rating protection

– IP67 recessed driveway

Operating Temperature

-20°C +40°C

Power supply

– Voltage range: 100-240VAC
– Frequency range: 47-63Hz
– Active Power Factor: PF>0.9
– Power: 45W – 0,2A@230V

Materials

– housing in aluminium – trim ring in stainless steel
– thermal-shock resistant tempered safety glass

Dimensions

– ø 290 x 200mm

Weight

– 5,5 Kg.
