TERRA PLUS RGBW RDM

Kategorie: , ,

Description

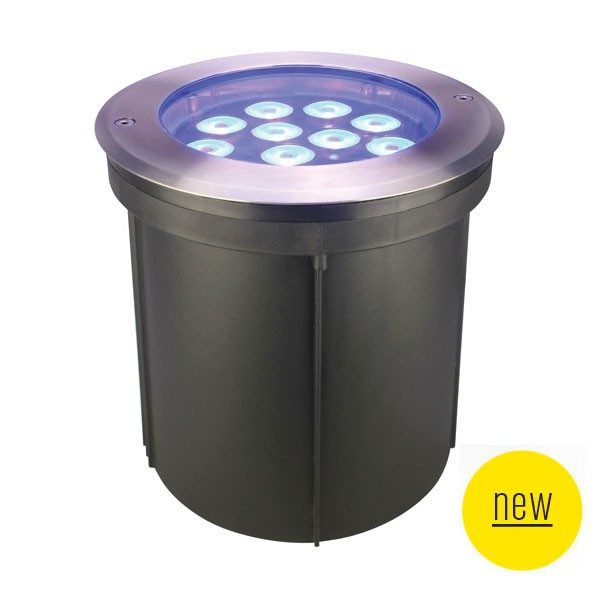

Inground LED fixture with 12 powerful RGBW LEDs. IP67 rating protection.

TERRA PLUS RGBW RDM can be used to decorate columns, pillars, along walkways, on patios, in steps, to highlight and to landscape details and key elements.

• Standard fixture colour finishing is grey

Additional information

Source

– n.12 RGBW/FC LEDs
– Lumen: R 600, G 1100, B 170, W 1200
– Total light power: 40W
Optic

– 15° beam (38mm lenses)
– On request: medium and wide beam
Control

– Standard interface: RS-485, optocoupled input
– Protocol: USITT DMX 512 / RDM
Connection

– Main Power: 3×1 cable 1,5mt.
– DMX INPUT and Tilt control: 4 Pin Male IP67 connector (cable 25cm.)
– DMX OUTPUT: 4 Pin Female IP67 connector (cable 25cm.)
Setup and Configuration

– RDM Control/configuration or individually by DRS (remote control device)
– Dedicated DMX channel for white balance
– DMX or Auto mode with Master-Slave function
– Intelligent temperature control
– Halogen simulation
– CYM simulation
– Flicker-free function
– Smooth dimming function
Rate

– IP67 recessed driveway
Operating Temperature

– -20°C +40°
Power supply

– Voltage range: 100-240VAC
– Frequency range: 47-63Hz
– Active Power Factor: PF>0.9
– Power: 45W – 0,2A@230V
DMX Channels

– n. 10ch, 9ch, 5ch, 4ch, 3ch
Materials

– housing in aluminium – trim ring in stainless steel
– thermal-shock resistant tempered safety glass
Physical

– DIMENSIONS: ø 290 x 200mm
– WEIGHT: 5,5 Kg.
