Lunatec > Products > Studio Due > Architectural > Controllers > SPLITTER 4 Exit

SPLITTER 4 Exit

Kategorie: , , , ,

Description

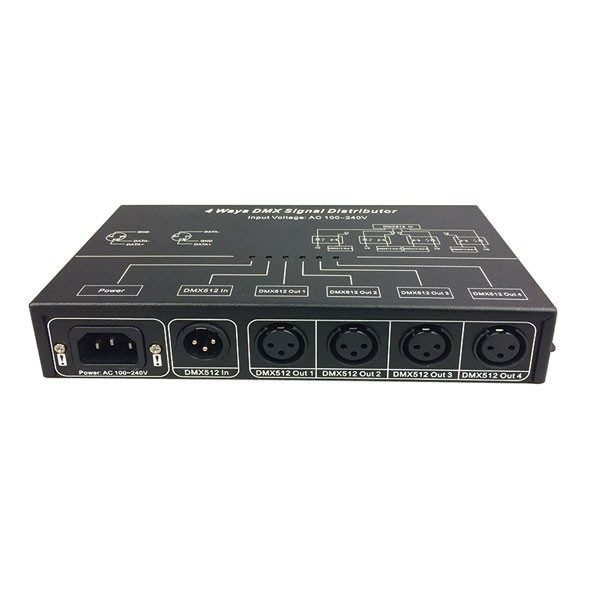

SPLITTER 4 EXIT: isolate, protect, boost and amplify a DMX source.

Each output has a separate driver, optical-isolator and power supply to ensure the highest possible level of protection.
Amplification allows extension of a DMX link above the maximum length specified by the DMX512 standard.
Up to 32 fixtures can be attached to each branch of a DMX line.

Additional information

Specification

– Operating temperatures: – 20°C ~ + 60°C
– Input voltage: AC100 ~ 240V
– Static power Consumption: < 4W
– Input signal: 1 channel DMX 512 signal
– Output signal: 4 channel DMX 512 signal
Physical

– WxDxH: 241×109,5×37,5 mm
– Weight: 0.7Kg
