Description

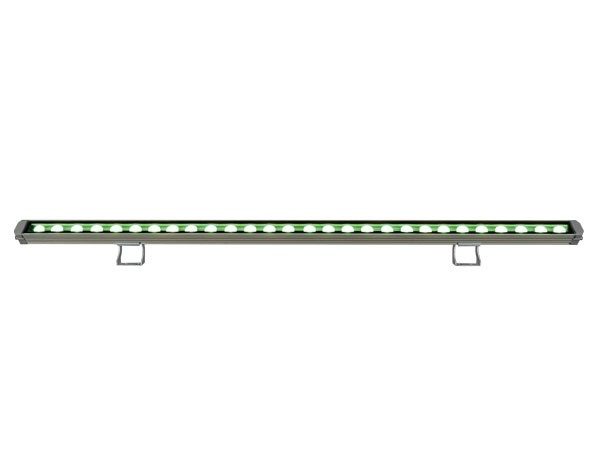

The SLIMBAR RGBW is an ultra small form factor LED LINEAR BAR with IP67 rating protection.
This kind of LED linear bar series with medium or wide lenses is suitable for accent lighting.
Available in 2 different measures, 100cm. (28 lenses) and 50cm. (14 lenses)

• Fixture colour finishing is grey.

Additional information

Source

– n. 28 mid power RGBW LEDs (n.14 for 50cm.)
– Lumen: R 460, G 950, B 260, CW 1300 (R 230, G 475, B 130, CW 650 for 50cm.)
– Total light power: 32W (16W for 50cm.)

Optic

– 20° medium (20mm lenses)
– On request: wide

Tilt

– Manual 200°

Control

– n.4 Channels 52VDC

Connections

– n.2 connectors 5pin IP 67 (male-female) cable 40cm.
– Possibility to link up to 5 devices in chain

Setup and configuration

– To drive SLIMBAR PILOT RGBW use SLIMBAR-F Pilot

Rate

– IP 67

Power consumption

– 42W (21W for 50cm.)

Power supply

– 52VDC – this fixture has to work with SLIMBAR-F Pilot

Physical

– WxDxH: 1000x35x40 mm (dimension of profile)
– WxDxH: 500x35x40 mm (dimension of profile)
– Weight: 1 Kg. or 0,5 Kg.
