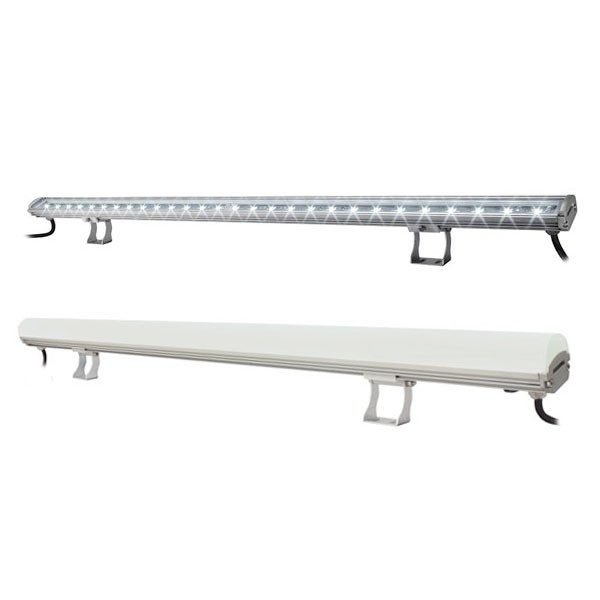

SLIMBAR FLAT/M (Monochromatic)


art. 1711

The SLIMBAR FLAT/M is an ultra small form factor LED LINEAR BAR with IP67 rating protection.
This kind of LED linear bar series is suitable for accent lighting.
Available in different light source without lenses:
– RGBW with high efficiency RGBW LEDs
– MONOCHROMATIC or WHITE BALANCE with high efficiency LEDs.
Available in 2 different measures, 100cm. and 50cm.

• Fixture colour finishing is grey.

Additional information


– n. 112 warm, neutral or cool White LEDs (n.56 for 50cm.)
on request: red, blue, green or amber LEDs
Lumen: 5000 (2500 for 50cm.)
Total light power: 35W (17W for 50cm.)


– 120° no lenses
– optional: milky diffuser


– Manual 160°


– n.4 Channels 48-52VDC


– n.2 connectors 5pin IP 67 (male-female) cable 40cm.
possibility to link up to 5 devices in chain


-n. 2 eyebolts for safety chains

Setup and configuration

– To drive SLIMBAR FLAT use SLIMBAR-F Pilot


– IP 67 Rating Protection

Power supply

– 52VDC – this fixture has to work with SLIMBAR-F Pilot


– WxDxH: 1000x35x40 mm (dimension of profile)
WxDxH: 500x35x40 mm (dimension of profile)
Weight: 1 Kg. or 0,5 Kg.
