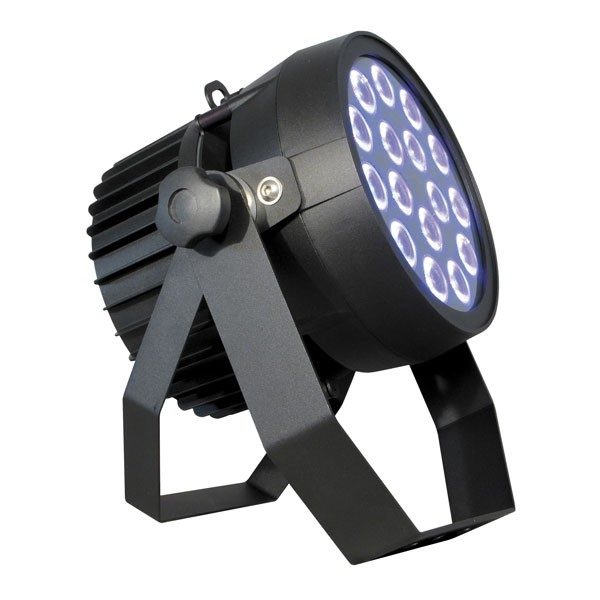

PARLED 200 PRO RGBW/FC

Description

PARLED 200 PRO is our IP20 RGBW Full Color flood projector with control panel (four buttons on the rear). Suitable for touring, tv studios, venues, theatres and generally for the entertainment market. Indoor use.
This fixture is wireless ready. Integral Wireless DMX control is available as an option (art. WI PCB-REC).

• Standard fixture colour finishing is black. Optional grey and white (art. FX-COLOUR).

Additional information

Source

– n. 16 (12W) RGBW Full Color LEDs supplyed 600mA
– 8000 total lm
– 130W total light power

Optic

– 20° standard beam (35mm lenses)
– On request: 40° wide beam (35mm lenses)

Tilt

– Manual 360°

Control

– Standard interface: RS-485; opto-couplet bi-directional
– Protocol: USITT DMX 512, RDM Protocol ready
– Integral Wireless DMX control (receiver) is available as an option (art. WI PCB-REC).

Setup and configuration

– Control panel with 4 push buttons (on the rear of the fixture)
– LED display with flip function (on the rear of the fixture)
– Dedicated DMX channel for white balance
– DMX or automatic mode with MASTER/SLAV E function
– Intelligent temperature control
– Flicker free function
– Smooth dimming function
– Halogen simulation
– CYM emulation
– Remote configuration by DRS Setup device

Rate

– IP 20

Power supply

– Switching power supply (universal main voltage)
– Rated voltage: 100-240V~; 50-60Hz
– Rated power: 140W
– Rated current: I max 1,5 A – fuse T3.15A
– Active Power Factor Correction

DMX Channels

– 9 ch mode
– 5 ch mode
– 4 ch mode

Physical

– WxDxH: 330x212x364(max)mm
– Weight: 6,5 Kg.
