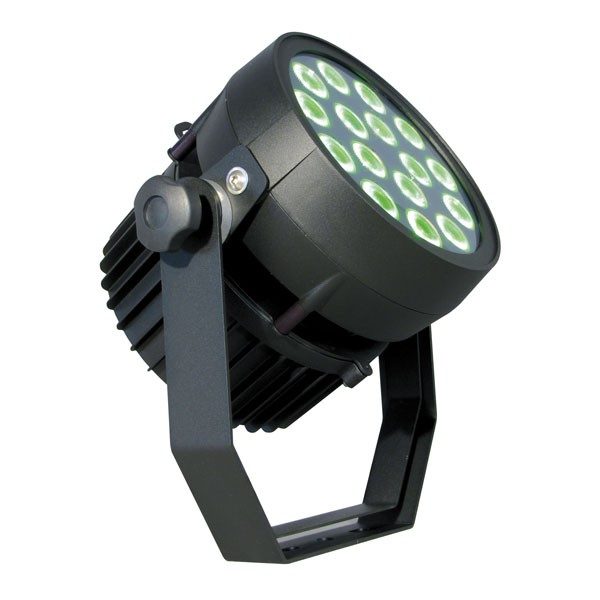

PARLED 200 PRO DRS RGBW/FC IP67

Description

PARLED 200 PRO DRS IP67 is our RGBW Full Color flood light projector.
Fixture configuration by DRS Setup.
• Compact and lightweight
• No fan, very quiet operation
• IP67 protection rating

Suitable for touring, tv studios, venues, theatres and generally for the architainment market.
This fixture is wireless ready. Integral Wireless DMX control is available as an option (art. WI PCB-REC).

• Standard fixture colour finishing is black. Optional grey and white (art. FX-COLOUR).

Additional information

Source

– n. 16 RGBW Full Color LEDs supplyed 600mA
– Luminous flux: Red 1500lm, Green 2200lm, Blue 450lm, White 3000lm

Optic

– 15° beam (38mm lenses)

Available on request

– medium and wide beam (38mm lenses)

Tilt

– Manual 360°

Control

– Standard interface: RS-485; opto-couplet bi-directional
– Protocol: USITT DMX 512, RDM Protocol ready

Connection

– Signal: 4pin IP 67 connector (male-female)
– Possibility to link up to 32 devices in chain
– Main Power: 3x1mm cable 1,5mt.
— Integral Wireless DMX control (receiver) is available as an option (art. WI PCB-REC)

Setup and configuration

– Dedicated DMX channel for white balance
– DMX or automatic mode with MASTER/SLAVE function
– Intelligent temperature control
– Flicker free function
– Smooth dimming function
– Halogen simulation
– CYM emulation
– Remote configuration by DRS Setup device

Rate

– IP 67

Working temperature

– -20°C +45°C

Power supply

– Switching power supply (universal main voltage)
– Rated voltage: 120-240V~; 50-60Hz
– Rated power: 100W
– Current: 0,45A@230VAC; PF 0,95

DMX Channels

– 9 ch mode
– 6 ch mode
– 5 ch mode
– 4 ch mode

Physical

– WxDxH: 305x212x364(max)mm
– Weight: 6,5 Kg
