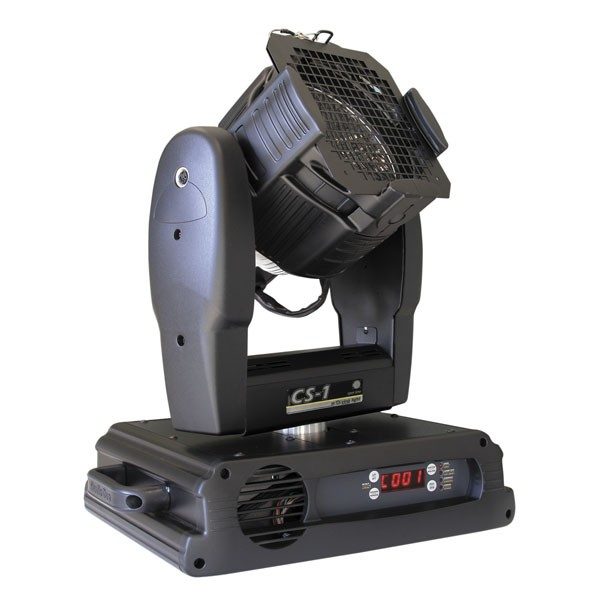

CS1 575 (discharge lamp)

Description

The Cs1 is a 575W moving head wash light projector and is equipped with four lenses for four different beam angles.

Additional information

Source

Lamp: MSD 575 discharge
Color temperature: 6.000 K
Lamp life: 3.000 hrs
Luminous flux: 43.000 lm
Color rendering index: (Ra)>75

Colours

Lamp: MSR 575/2 discharge
Color temperature: 7.200 K
Lamp life: 1.000 hrs
Luminous flux: 49.000 lm
Color rendering index: (Ra)>80

Optic

15 VNSP lens (very narrow beam)
19 NSP lens (narrow beam)
21×34 MFL lens (medium beam)
30×51 WFL lens (wide beam)

Effects

Electronic dimmer 100%-60%

Pan Tilt

Stepper motor 8 or 16 bit resolution
– 540 pan
– 270 tilt
Encoder close loop with autorepositioning

Control

Standard interface: RS-485
Opto-coupled input
Protocol: USITT DMX512

Setup and configuration

Built-in microprocessor with LED display and keys

Power Supply

Rated voltage: 95-260V~ ; 47-63Hz, electronic ballast

DMX Channels

8 ch mode

Physical

WxDxH: 430 x 340 x 500mm
Weight: 12 kg.
