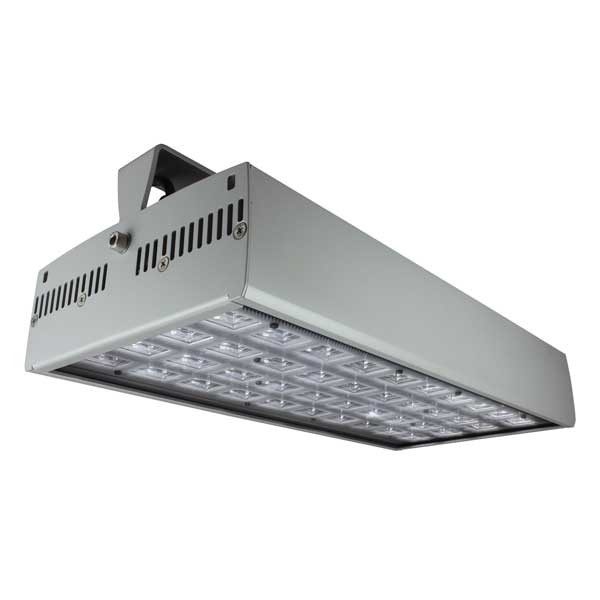

CR-i 80 (high bay indoor)

Kategorie: , ,

Description

art. 1544

Reliability and energy efficiency combined with lightness, are the main characteristics of CR-i 80, High Bay for indoor use. It uses high brightness white LEDs in combination with an innovative optical system with antiglare reflectors. Easily adaptable for applications such as commercial areas, industrial areas, warehouses and stores where is required widespread and powerful lighting in large spaces.

Standard fixture colour finishing is grey. Optional black and white (art. FX-COLOUR).

Additional information

Source

– n. 80 (5W) White LEDs
Total light power: 200W
Total out lumen: 25000lm
Optic

– 70°x55°
Connections

-Main Power: 3x1mm cable 1,5mt. (standard version Plug-in)
On request:
– DMX controller
– DALI controller
– Integrated movement detectors for extra energy saving
Rating Protection

– IP 67
Power Supply

– Voltage range: 100-240VAC
Frequency range: 47-63Hz
Active Power factor: PF>0.97/230VAC, PF>1/115VAC
Current: 0.65A@230VAC; 1,2A@120V
Fuse inside Power Supply
Power: 145W
Physical

– WxDxH: 520x236x143 mm
– Weight: 9,2 Kg.
