CONTROL SOFTWARE TOUCH (1024ch)

Kategorie: , , , ,

Description

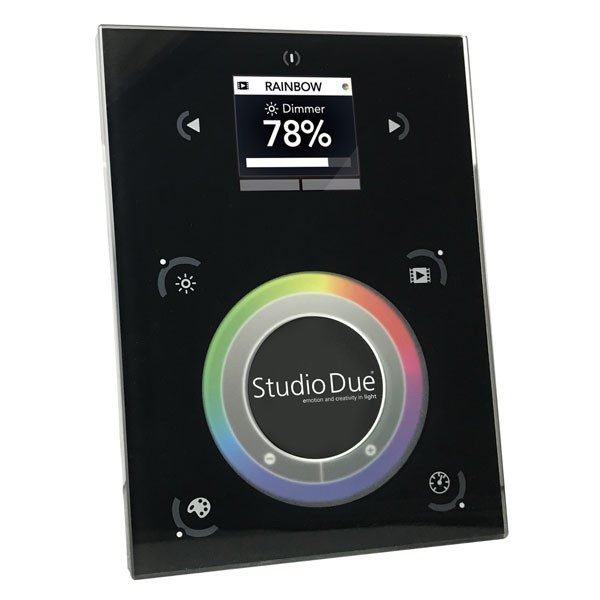

Control Software Touch 1024ch has been designed to provide a control solution for the most demanding of projects, whilst maintaining an easy to use panel of touch sensitive buttons. The controller integrates a graphical color screen allowing scene photos to be displayed.
Easily view the selected zone, scene name and design without the need to navigate through complex menus.
Change the speed, color and dimmer using the circular palette.
The lighting levels, color and effects can be programmed from a PC, Mac, Android, iPad or iPhone using the included software..

Additional information

Key features

– Sleek glass design which sits 11mm from the wall
– Graphical color display to show selected environment
– Color/dimmer/speed palette
– Color temperature mixing
– Touch sensitive buttons. No mechanical parts
– Touch sensitive wheel allows for accurate color selection
– Multi-zone microSD memory
– Multi-room control with 500 scenes, 10 zones
– 1024 DMX channels. Control 340 RGB fixtures
– USB & Ethernet connectivity for programming and control
– RS232, Dry Contact Ports and an Infra Red input port
– Clock and calendar with Sunrise/Sunset triggering
– Network communication. Control light remotely
– Catalog of designs including black and white glass
– OEM customization of the color palette and logo
– Windows/Mac software to set dynamic colors/effects
– iPhone/iPad/Android remote and programming apps
Input power

– 6-7V DC 0.6A
Output Protocol

– DMX512 (x2)
Programming

– PC
– Mac
– Tablet
– Smartphone
Available Colors

– Black
– White
Connections

– Ethernet
– USB
– RS232
– Clock
– 8 dry contact ports
– 5v Output Relay
Memory

– microSD (32Gb Max)
Temperature Battery

– -10 °C to 45 °C LIR2032
Mounting

– Single or double gang wall socket
Dimensions

– 146x106x11mm
Weight

– 247 g
Standards

– EC
– EMC
– ROHS
– ETL
Optional Accessories

– RJ2BLOCK – RJ45 to connector block converter for power+DMX
– POWER4M – 6-7v ACDC power supply
