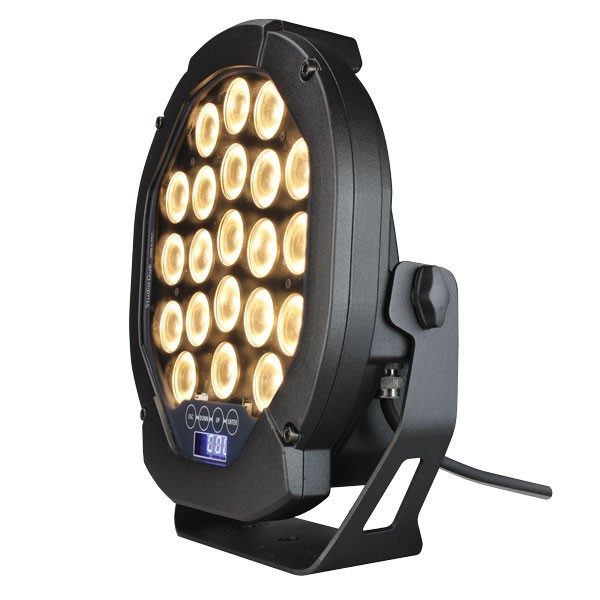

ARCHILED 200 WB (White Balance)

Description

The ARCHILED 200 is the last version of the Archiled range. It’s even more compact (only 100mm depth), elegant, highly reliable and even more robust from a mechanical point of view.
IP 67 rating protection.
White Balance (WB) or Monochromatic (M) version is equipped with 42 powerfull Hi-Power Nichia NVSW219CT.
It is particularly adapt to be used to light up with deep beam of light, several final applications in the architectural field specifically for hotels and hospitality, retail and commercial malls, parks and landascapes, historical and cultural monuments.
Touch control panel for easy configuration of the fixture.

• Standard fixture colour finishing is black.
Optional grey and white (art. FX-COLOUR).
Optional: marine grade treatment.

Additional information

Source

n.21 warm white (2900K) + n.21 cool white (6000K) Hi-Power Nichia NVSW219CT
Lumen: 9000
65W total light power

Optic

15° beam (38mm lenses)
On request: medium and wide beam (38mm lenses)

Tilt

Manual 160°

Control

Standard interface: RS-485; opto-couplet bi-directional
Protocol: USITT DMX 512
> Integral Wireless DMX control (receiver) is available as an option (art. WI PCB-REC).

Connection

Main Power: 3×1 cable 1,5mt.
DMX INPUT: 4 Pin Male IP67 connector (cable 25cm.)
DMX OUTPUT: 4 Pin Female IP67 connector (cable 25cm.)

Setup and configuration

Control panel with touch technology and led display with flip function
Dedicated DMX channel for white balance
DMX or Auto mode with Master-Slave function
Intelligent temperature control
Flicker-free function
Smooth dimming function
Halogen simulation
CYM simulation
Remote configuration by DRS Setup device

IP rating protection

IP67

Power supply

(Universal Voltage)
Voltage range: 120-240VAC
Frequency range: 47-65Hz
Active Power Factor: PF>0.92
Power: 75W

DMX Channels

– 4 ch mode
– 2 ch mode
– 1 ch mode

Physical

WxDxH: 270x100x303 mm
Weight: 4,9 kg.
