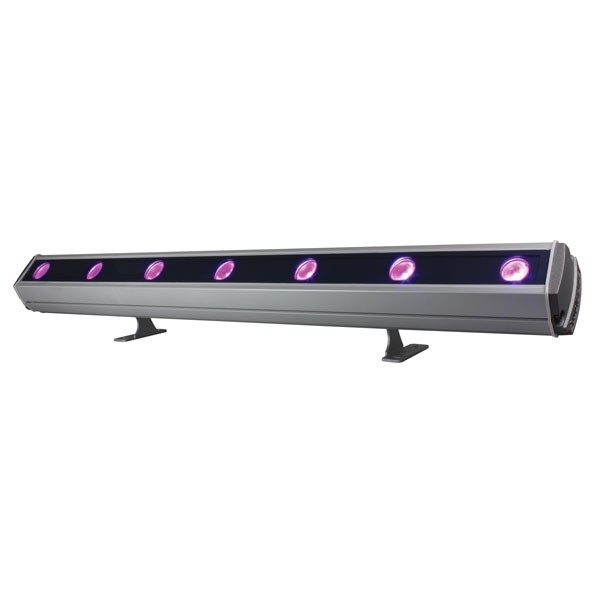

ARCHIBAR SL100 RGBW/FC

Categories: , , , , .

Description

The ARCHIBAR SL100 is the base version of the new Archibar line in terms of light output and kind of LEDs used.
Available in RGBW/FC and MONOCHROMATIC light source as well as in WHITE BALANCE.

Available in 4 different measures:
• Standard 90 cm.
• On request 60 – 120 – 150 cm

• Standard fixture colour finishing is grey. Optional black and white (art. FX-COLOUR).

Additional information

Source

– n. 7 RGBW-FC-LEDs (n.7 lenses)
– Total out lumen: R 600, G 1000, B 180, W 1200
– Total light power: 49W
Optic

– 25° medium (38 mm lenses)
– On request: narrow, wide (38 mm lenses)
Tilt

– Manual 160°
Control

– Standard interface: RS-485
– Protocol: USITT DMX 512
Connections

– Signal: 3pin IP 67 connector (male-female) cable 35cm.
– Possibility to link up to 32 devices in chain
– Available as accessories:
— Wireless DMX receiver
– Main Power: 3pin IP 67 connector (male-female) cable 40cm.
– Possibility to link up to 10 devices at 230V or 6 devices at 120V in chain.
Safety

– n. 2 eyebolts for safety chains
Setup and configuration

– By DRS (remote control device)
– Dedicated DMX channel for white balance
– DMX or Auto mode with Master-Slave function
– Intelligent temperature control
– Halogen simulation
– CYM simulation
– Flicker-free function
– Smooth dimming function
Rate

– IP 67
Power supply

– Voltage range: 100-240VAC
– Frequency range: 47-63Hz
– Active Power factor: PF>0.94/230VAC, PF>0.99/120VAC
– Current: 0.25A@230VAC, 0.45A@120V
– Power: 55W
– Fuse T3,15A (inside fixture)
Physical

– WxDxH: 944 x93x115 mm
– Weight: 3,8 Kg.
