Description

art. 18541

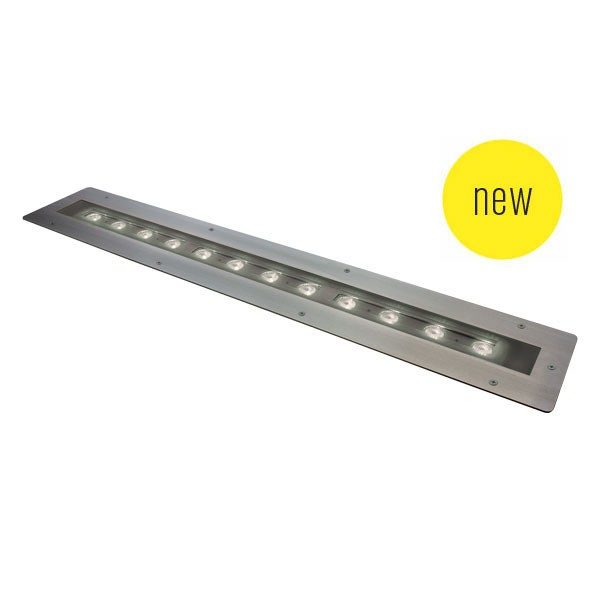

The ARCHIBAR-i SL150 RDM is a new version of the Archibar line.
INGROUND LED linear bar which combines aesthetic and resistance with ideal performance in a versatile projector. Waterproof and tremendously resistant.
Available in RGBW/FC and MONOCHROMATIC light source as well as in WHITE BALANCE.

Plug-in version, available on request RDM / DMX Protocol dimmable version (art. 1854). Configuration by DRS Setup.

Additional information

Source

– n. 24 (5000K) White LEDs
– Total out lumen: 7500
– Total light power: 48W
– On request: 3000K, 4000K, 6000K white LEDs or red, green, blue, amber LEDs

Optic

– 20°x30° Square Open (38 mm lenses)
– On request: narrow, medium, wide and 30°x50° (38 mm lenses)

Tilt

Control

– None
On request: dimmable version RDM – DMX / DALI (art. 1854)

Connections

Safety

Setup and configuration

Plug-in

Rate

– IP 67 Rating Protection

Power supply

– Voltage range: 100-240VAC
– Frequency range: 47-63Hz
– Active Power factor: PF>0.97/230VAC
– Current: 0.19A@230VAC
– Power: 45W
– Fuse T3,15A (inside fixture)

Physical

– WxDxH: 1063x182x133 mm
Weight: 15 Kg.
